SRAM Unveil New NX 1x Drivetrain
Thu 11th Feb, 2016 @ 3:30 pm
https://www.youtube.com/watch?v=jIxLcDijUgU&feature=youtu.be
The transmissioin gurus over at SRAM have just announced their ‘most affordable, dedicated 1x drivetrain to date’, the SRAM NX. We’re looking forward to getting this shiny new kit on the block onto the test bed to see how it stands up.
SRAM NX – START WITH ONE
SRAM NX 1x DRIVETRAIN
It’s how you start that matters. Whether you’re discovering the mountain for the first time or you’re an MTB lifer searching for a no-nonsense, no-worries 1x drivetrain, SRAM NX is ready for action and ready to take you there. NX brings you a wide range of gear choices engineered for simplicity and durability, so you can focus on what matters most—the ride ahead. German engineered and proudly bearing the SRAM 1x™ stamp of approval, NX is ready to let the world know what real riding feels like. START NEW. START RIGHT. START WITH SRAM NX.
__________________________________

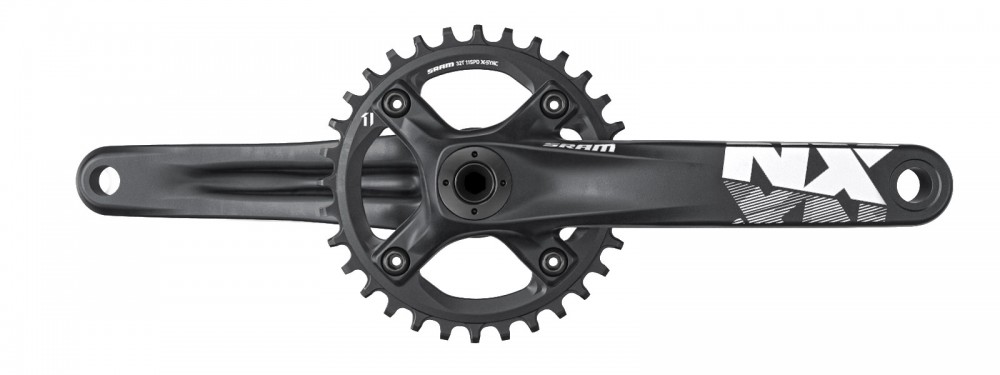

1x X-SYNC™ CRANKSET
The NX Crank will come in 24mm and 30mm flavours
__
OVERVIEW
The SRAM NX crankset provides high performance at the right price. Featuring the SRAM engineered X-SYNC™ chainring, the NX crankset is engineered for complete chain control. Each tooth’s thickness is CNC machined to work seamlessly with the chain’s inner and outer links.
__
MSRP PRICE
$116 | €120 | £92
__
FEATURES AND BENEFITS
6000 series aluminum arms
Fully compatible with all SRAM 1x™ drivetrains
Most affordable fully featured 1x crank in the industry
Usage: XC, TR, EN
Technologies: X-SYNC™, GXP, BB30
__
SPECIFICATIONS
SPEEDS:
11
BB COMPATIBILITY:
BB30/PF30-68/73mm, GXP 100mm/ PF GXP 121mm, GXP PF GXP 68/ 73mm
CHAINRING COMPATIBILITY:
28t, 30t, 32t, 34t, 36t, 38t, 40t
CRANK ARM LENGTH:
155mm, 165mm, 170mm, 175mm
COLOR (CRANK ARM):
Black
BB SPINDLE INTERFACE:
24mm, 30mm
CHAINRING MATERIAL:
Aluminum
GUARD
: Aluminum Guard, No Guard
BOLT CIRCLE DIAMETER (BCD):
94 BCD
CRANK ARM MATERIAL
: Aluminum
CHAINLINE
: 49.0mm, 52.0mm, 66.5mm
PART WEIGHT:
680-780g
_____________________________________________________

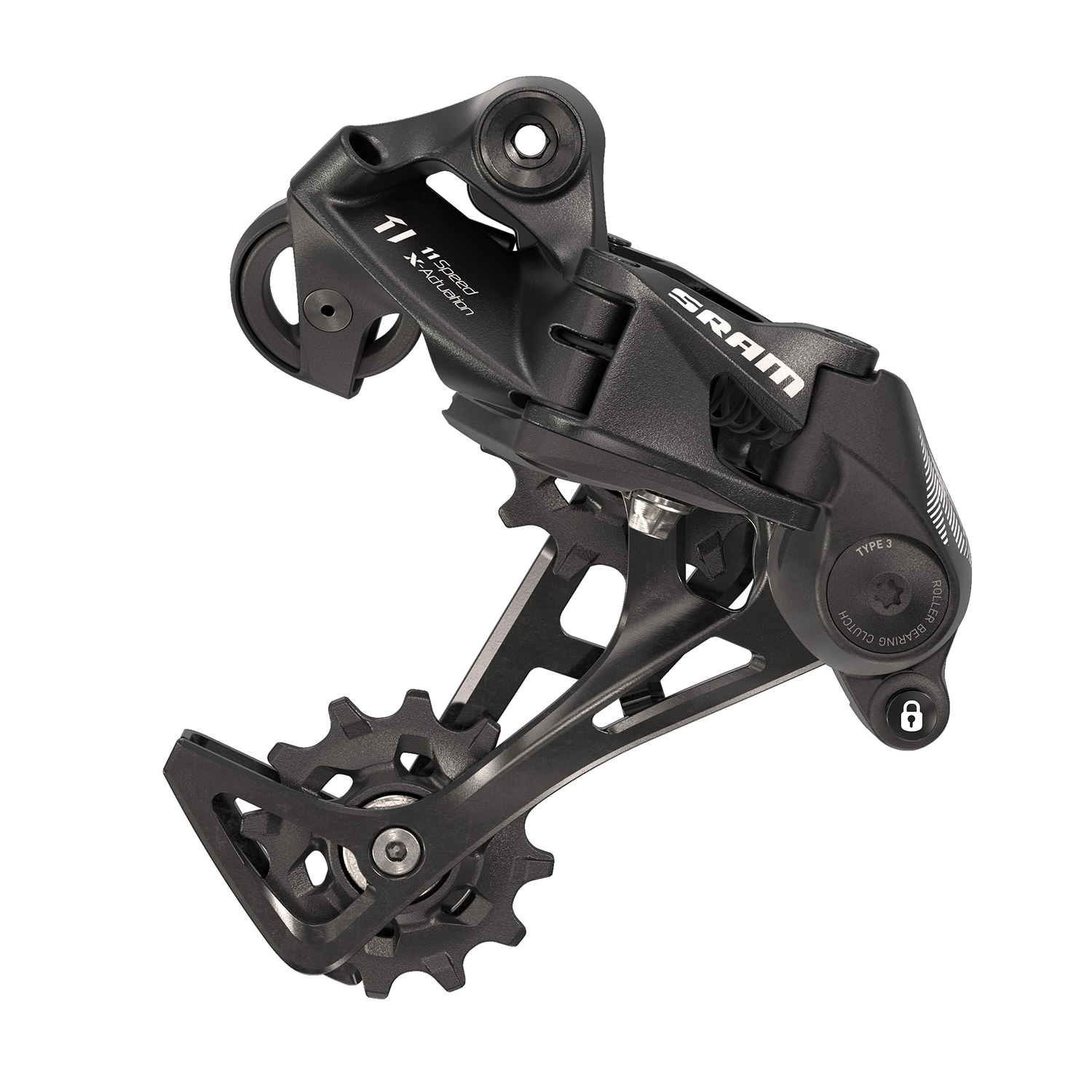

1×11 X-HORIZON™ REAR DERAILLEUR
CAGE LOCK™ technology will make wheel removal and installation easier
__
OVERVIEW
The SRAM NX X-HORIZON™ rear derailleur provides the same smooth, reliable shifting action as XX1—from the larger upper pulley offset to the 12-tooth X-SYNC™ pulley wheels. By eliminating unwanted chain movement, X-HORIZON™ shifts faster, puts an end to ghost shifting and reduces shift force and chain slap. And with CAGE LOCK™ technology, wheel removal and installation are easier than ever.
__
MSRP PRICE
$74 | €76 | £58
__
FEATURES AND BENEFITS
X-HORIZON™ design that reduces shift force, ghost shifting and chain slap
12-tooth X-SYNC™ pulley wheels
Fully compatible with all SRAM 1x™ drivetrains
Most affordable fully featured 1x rear derailleur in the industry
__
USAGE
: xc, tr, en
___
TECHNOLOGIES
X-HORIZON™
X-SYNC™
X-ACTUATION™
CAGE LOCK™
ROLLER BEARING CLUTCH™
__
SPECIFICATIONS
SPEEDS:
11
CABLE PULL RATIO:
X-ACTUATION™
CAGE:
Long
MAX TOOTH:
42
COLOR
: Black
PULLEY BEARINGS MATERIAL:
Steel
CAGE MATERIAL
: Steel
PART WEIGHT:
322g
______________________________________________

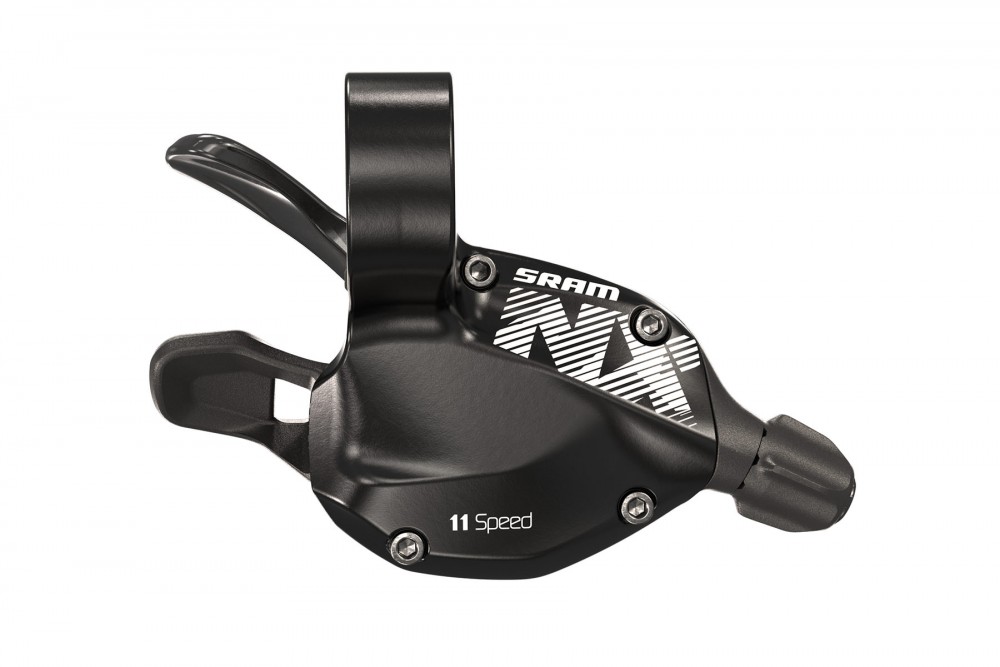

11-SPEED X-ACTUATION™ TRIGGER SHIFTER
NX will come with a trigger shifter if GRIP SHIFT is not your bag
__
OVERVIEW
SRAM NX trigger shifter with X-ACTUATION™ technology gives you sharp, dependable shifting. Built for precise and swift shifting across our wide range 11-speed cassette, the NX trigger shifter brings industry changing technology to everyone.
__
MSRP PRICE
$27 | €28 | £22
__
FEATURES AND BENEFITS
X-ACTUATION™ for precise and dependable 11-speed performance
Fully compatible with all SRAM 1x™ drivetrains
___
USAGE
: xc, tr, en
___
TECHNOLOGIES
X-ACTUATION™
__
SPECIFICATIONS
SPEEDS:
11
COMPATIBILITY
: 11-speed rear derailleur
CABLE PULL RATIO:
X-ACTUATION™
COLOR:
Black
CABLE LENGTH
: 2200mm
SHIFTER TYPE
: Trigger
MATCHMAKER COMPATIBLE
: No
CLAMP INCLUDED
: Yes
MAX UPSHIFTS:
5
PULL LEVER ADJUST:
No
MULTI-POSITION:
No
GEAR INDICATION
: No
PART WEIGHT:
142g
_______________________________________________

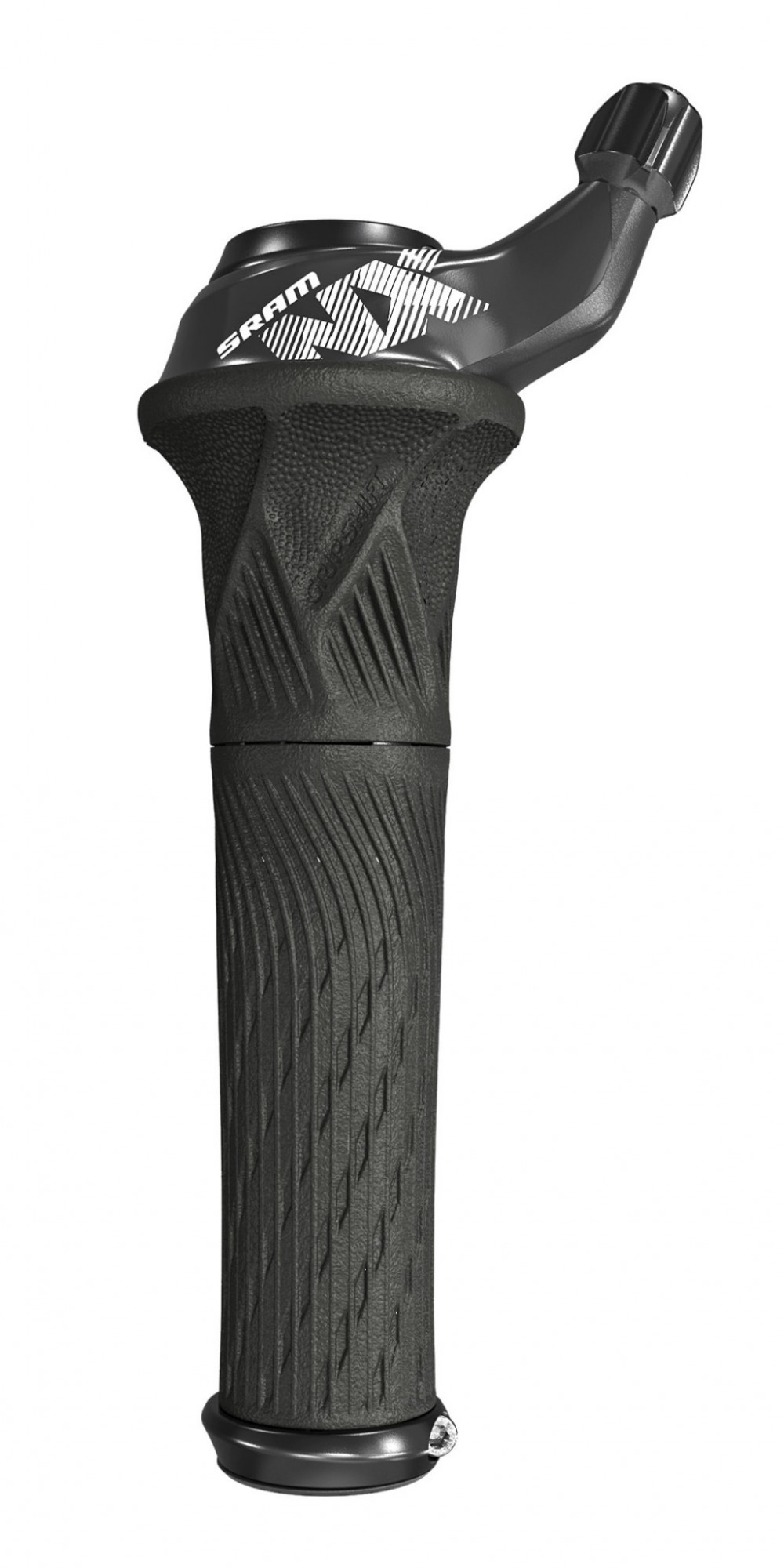

11-SPEED X-ACTUATION™ GRIP SHIFT
The NX GRIP SHIFT option ‘gives sharp, dependable shifting’
__
OVERVIEW
SRAM NX Grip Shift with X-ACTUATION™ technology gives you sharp, dependable shifting. Built for precise and swift shifting across our wide range 11-speed cassette, the NX Grip Shift brings industry changing technology to everyone.
__
MSRP PRICE
$33 | €35 | £26
__
FEATURES AND BENEFITS
SRAM 1x™ X-ACTUATION™ for precise and dependable 11-speed performance
SPEED METAL™ shift indexing
ROLLING THUNDER™ ball bearing technology
JAWS™ lock-on grip technology
Most affordable fully featured 1x grip shifter in the industry
__
USAGE: xc, tr, en
___
TECHNOLOGIES
X-ACTUATION™
SPEED METAL™
ROLLING THUNDER™
JAWS
___
SPECIFICATIONS
SPEEDS:
11
COMPATIBILITY
: 11-speed rear derailleur
CABLE PULL RATIO:
X-ACTUATION™
COLOR
: Black™
CABLE LENGTH:
2200mm
SHIFTER TYPE
: Twist
MATCHMAKER COMPATIBLE:
No
CLAMP INCLUDED:
Yes
MAX UPSHIFTS:
n/a
PULL LEVER ADJUST:
n/a
MULTI-POSITION:
No
GEAR INDICATION
: No
_____________________________________________

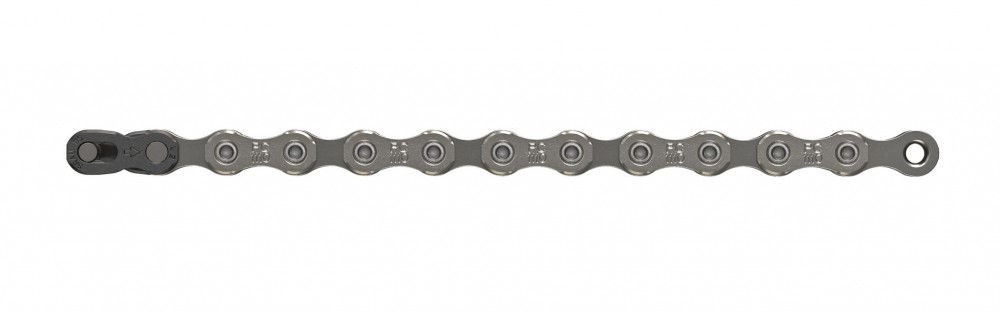

PC-1110 CHAIN
The NX’s PC-1110 Chain derives from XX1 technology
__
OVERVIEW
Designed from a long line of dependable, lightweight chains that are built for toughness, the recommended chain for NX, PC-1110. Designed with SRAM’s trusted XX1 geometry, the PC-1110 features solid pin construction, 11-speed PowerLock® and smooth, efficient shifting that you can count on every time out.
__
MSRP PRICE
$14 | €14 | £11
__
FEATURES AND BENEFITS
Optimized to work with X-SYNC™ rings for precise and dependable 11-speed performance
Fully compatible with all SRAM 1x™ drivetrains
__
USAGE: xc, tr, en, gr
___
TECHNOLOGIES
X-SYNC™
__
SPECIFICATIONS
COMPATIBILITY—SPEED:
11
CHAIN LENGTH:
114 links
COLOR—OUTER LINK:
Grey
COLOR—INNER LINK:
Grey
CHAIN CONNECTOR
: PowerLock®
INNER LINK FINISH
: Polished
OUTER LINK FINISH:
Polished
PIN VARIANT
: Solid Pin
PIN TREATMENT:
Chrome Hardened
PART WEIGHT:
232-273g
__________________________________________________

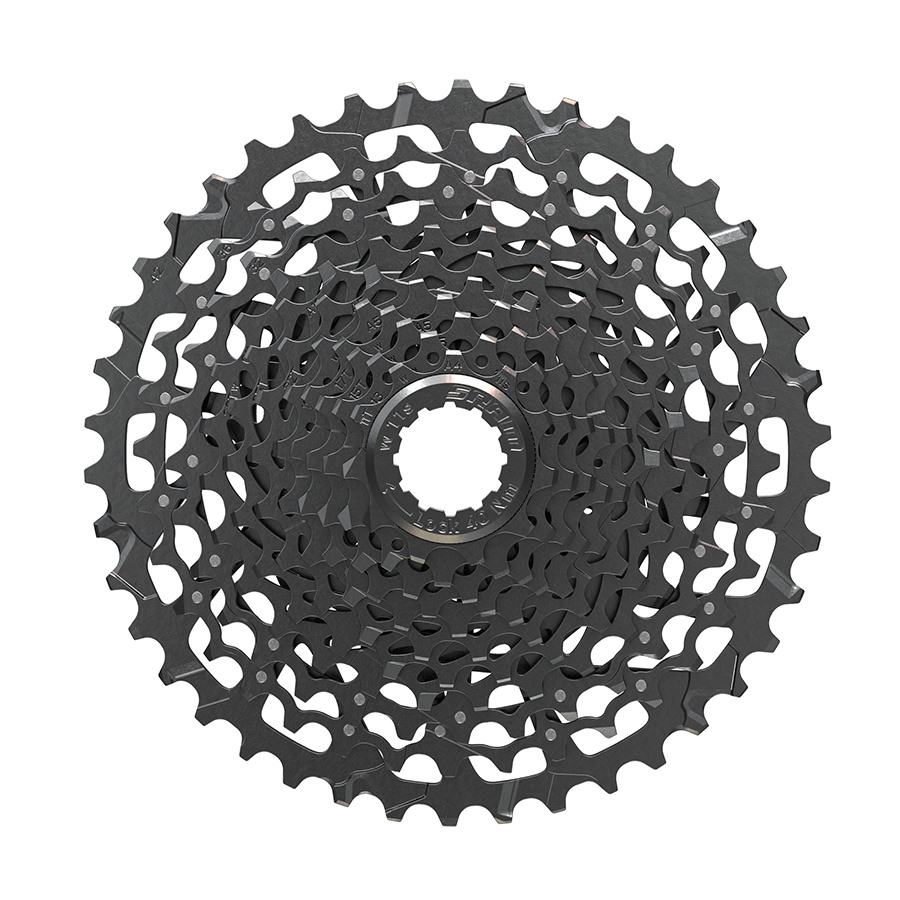

PG-1130 CASSETTE
The NX 11-speed cassette can be customised with one of eight options
__
OVERVIEW
The PG-1130 cassette is light, durable and equipped with SRAM’s super wide 11-42t gear range that’s a perfect fit for any ride. Personalize your wide range gearing with one of eight available X-SYNC™ chainrings.
__
MSRP PRICE
$79 | €89 | £68
__
FEATURES AND BENEFITS
Super wide gear range—a perfect fit for any ride
Optimized gear steps across entire range
Compatible with non XD™ driver body
Fully compatible with all SRAM 1x™ drivetrains
__
USAGE:
xc, tr, en
__
SPECIFICATIONS
SPEED:
11
GEARING:
11-42t
COG FINISH
: Black
TECHNOLOGY:
PG
COG SIZES:
11t, 13t, 15t, 17t, 19t, 22t, 25t, 28t, 32t, 36t, 42t
COGS ON CLUSTER:
3
PART WEIGHT
: 538g
____________________________________________
TECHNOLOGIES
X-HORIZON™
The X-HORIZON™ rear derailleur’s ‘straight parallelogram’ design limits all movement to the horizontal axis, which makes ghost shifting impossible while also reducing shift force. For quicker, more exact shifting, the large upper pulley offset design maintains a constant chain gap across all gears.
DERAILLEUR MOVEMENT LIMITED TO HORIZONTAL AXIS
UPPER PULLEY OFFSET PROVIDES CONSTANT CHAIN GAP
____
X-SYNC™
SRAM X-SYNC™ 1x chain rings provide the highest level of performance and durability. The SRAM X-SYNC™ tall square teeth edges engage the chain earlier than traditional triangle shaped teeth. The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain. To provide the best possible performance in muddy conditions, the X-SYNC™ chainrings have been designed with mud-clearing recesses for the inner chain links and rollers. Engineered in Germany, X-SYNC™ rings are an integral part of the SRAM 1x™ drivetrain.
____
X-ACTUATION™
Developed specifically for SRAM 1x™, X-ACTUATION™ keeps shifting sharp and consistent across the entire cassette.
____
CAGE LOCK™
With CAGE LOCK™ technology in the rear derailleur, wheel removal and installation—as well as chain installation—becomes faster and simpler. Just pushing the cage forward to create slack and lock it into place.
____
ROLLER BEARING CLUTCH™
ROLLER BEARING CLUTCH™ rear derailleurs deliver maximum drivetrain stability—even through the most punishing terrain. With ROLLER BEARING CLUTCH™ technology, derailleur bounce and chain slap are eliminated without sacrificing precision.
____
SPEED METAL™
Full metal, 11-speed indexing keeps shifting crisp and precise with Grip Shift.
____
ROLLING THUNDER™
Three rows of ball bearings provide zero friction or play—reducing the force needed to shift and promoting long-term performance under all weather conditions with Grip Shift.
____
JAWS™
Once the Grip Shift shifter and grip interlock securely, forged aluminum clamps on either end reinforce the assembly by locking tightly to handlebar.
