Continuing the trend of the plus-sized revolution, Rocky Mountain has released a new chunky trail machine, The Pipeline, offering 150mm of front and 130mm of rear suspension. Designed to hammer through difficult lines with ease, are plus-sized bikes a new route to big laughs or a way to cheat on the trail?

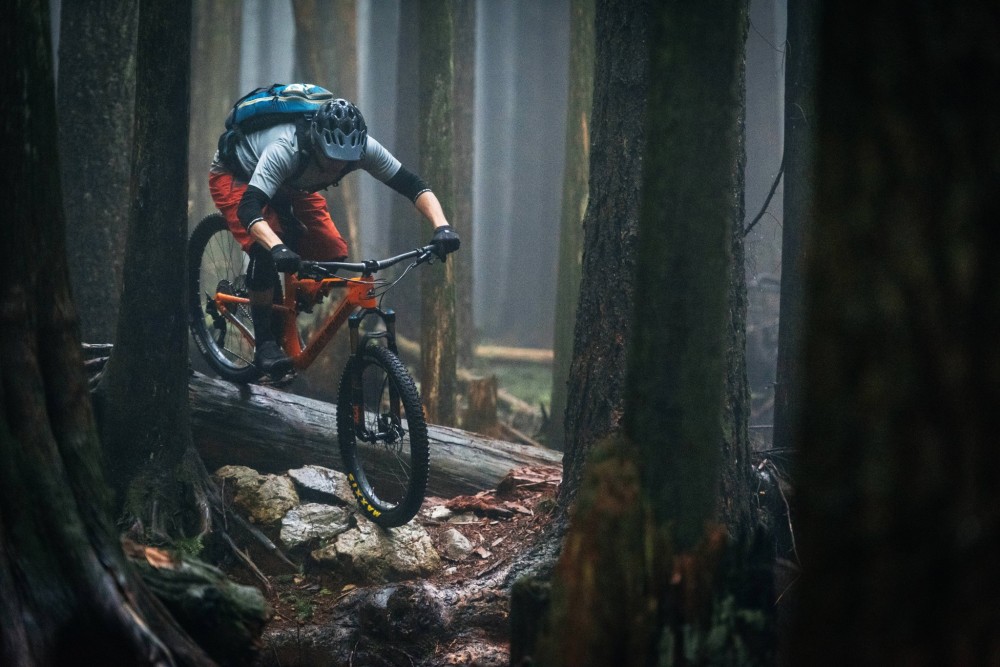

Rocky Mountain Pipeline Orange

The Pipeline is available from mid May starting at $3999 USD

The confidence of plus-sized tires in raw, technical terrain is now available in an aggressive trail chassis. The new Pipeline plows through greasy roots and square-edged chunder with authority, while providing near limitless traction on rocky, slippery climbs.

“Early on in testing I realized I could take the ‘stupid lines’ on our local North Shore trails and the big tires would just flow straight through them. The more technical a line, the more I felt like I was cheating.”

Product Manager, Ken Perras.

Details

  • Smoothwall carbon front triangle, FORM alloy rear triangle
  • Fits up to 27.5×3.25 tires
  • 1x specific
  • Lightweight bolt-on axles save 50g per bike compared to a Maxle
  • BC2™ pivots feature grease ports for easy maintenance
  • Stealth dropper post equipped
  • Internal cable routing
  • PressFit BB92 bottom bracket, IS42/IS52 headset, Boost axle spacing
  • Sizing: S/M/L/XL

Geometry

The Pipeline is based on our much-loved Instinct platform. Like the Instinct, the Pipeline is stable and balanced, with a massive range of adjustments available thanks to RIDE-9. A neutral bottom bracket drop and plus-specific fork offset contribute to an intuitive ride feel with excellent steering dynamics.

Rocky Mountain Pipeline Black

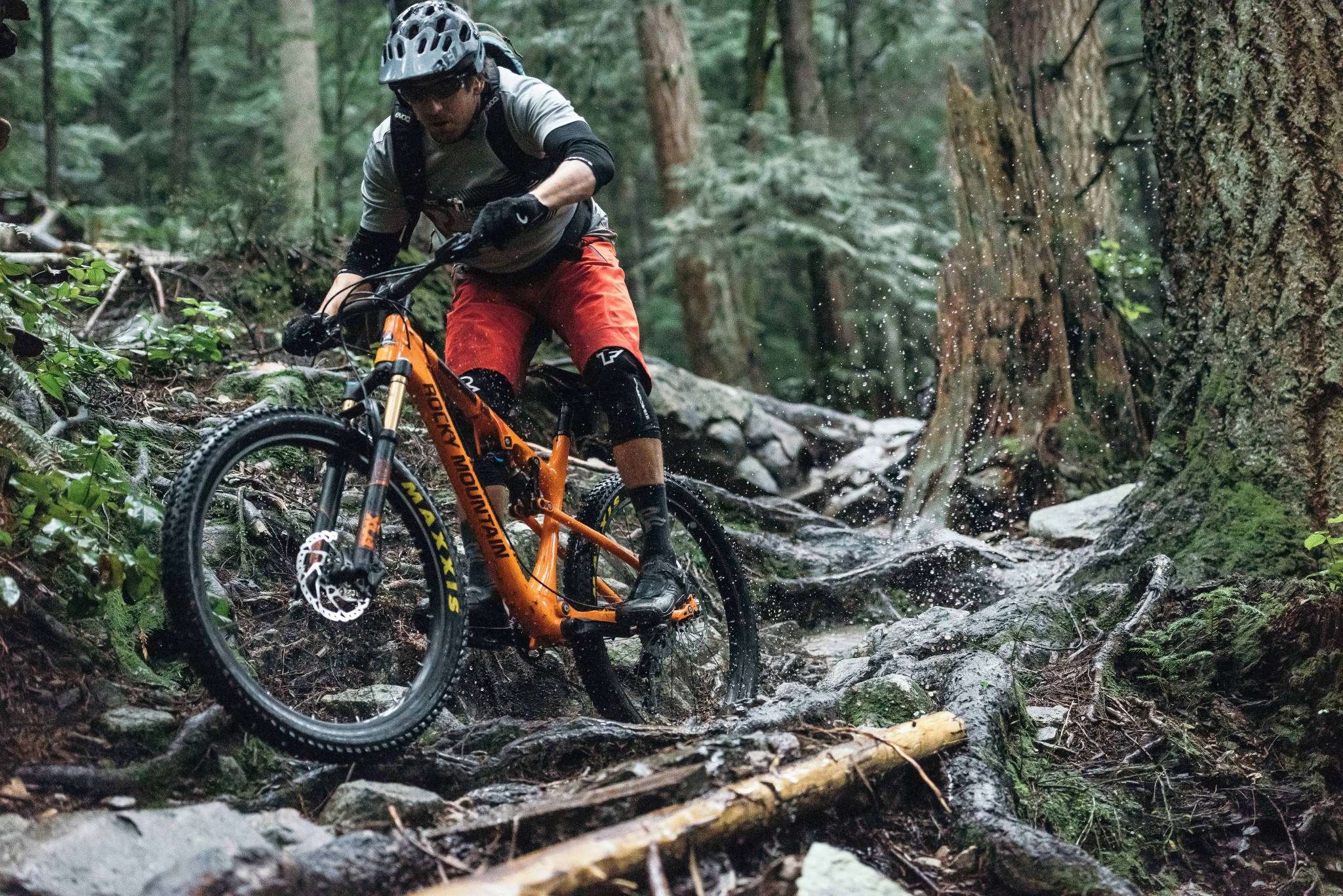

Plus-sized tyres give the Pipeline a confident ride

Wheels

Riders attacking technical, choppy terrain will immediately feel the benefits of high-volume plus tires. Their large contact patch and lower pressures improve traction, mud shedding, and small-bump compliance for more on-trail confidence.

Technologies

The RIDE-9™ system allows riders to adjust geometry and suspension rates to specific riding styles, terrain, and rider weights. Nine configurations are possible thanks to two interlocking chip inserts that move on two separate axes.

Smoothwall™ carbon uses one of the world’s most sophisticated carbon processes to build frames with industry leading stiffness-to-weight, ride quality, and durability. By using rigid internal molds, we are able to perfect the shape of the internal features and eliminate excess materials. We use different types of carbon in specific frame areas to maximize stiffness and impact resistance while minimizing overall weight.

Rocky Mountain Pipeline

Smoothlink™ suspension is designed to prevent pedal-bob and bottom-outs

FORM™ alloy tubesets are engineered for specific purposes within each frame, ensuring optimized strength, weight, and ride quality. FORM™ tubesets use premium materials to meet our strict requirements.

Smoothlink™ suspension stays supple yet supportive through a wider range of gears than conventional single pivot or other four-bar suspension configurations. This patented system reduces both pedal-bob and bottom-outs, while allowing us to fine tune variables like braking and climbing traction across a wide range of intended uses.

BC2™ pivots are lighter and stiffer than conventional bearing pivots. Unlike other bushings, our patented system uses a hardened alloy insert that bottoms out to control the contact of the bushing surfaces, reducing the preload that causes stiction and binding. BC2™ Pivots also feature grease ports for effortless maintenance.

Wheel Size: 27.5+
Intended Use: Aggressive Trail
Front Travel: 150mm
Rear Travel: 130mm

Wed 13th Apr, 2016 @ 9:30 am
